Exhaust Gas Treatment Device

Exhaust Gas Treatment Device

It is a exhaust gas deal with equipment for protecting the environment, make sure the exhaust gas is clean.

Application:

1. Automotive repair shop

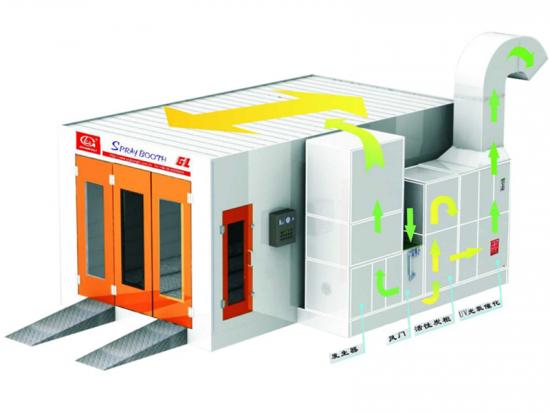

2. Spray booth/Paint booth

3. Industry gas treatment

4. Powder and coating

1. Economical models and configurations

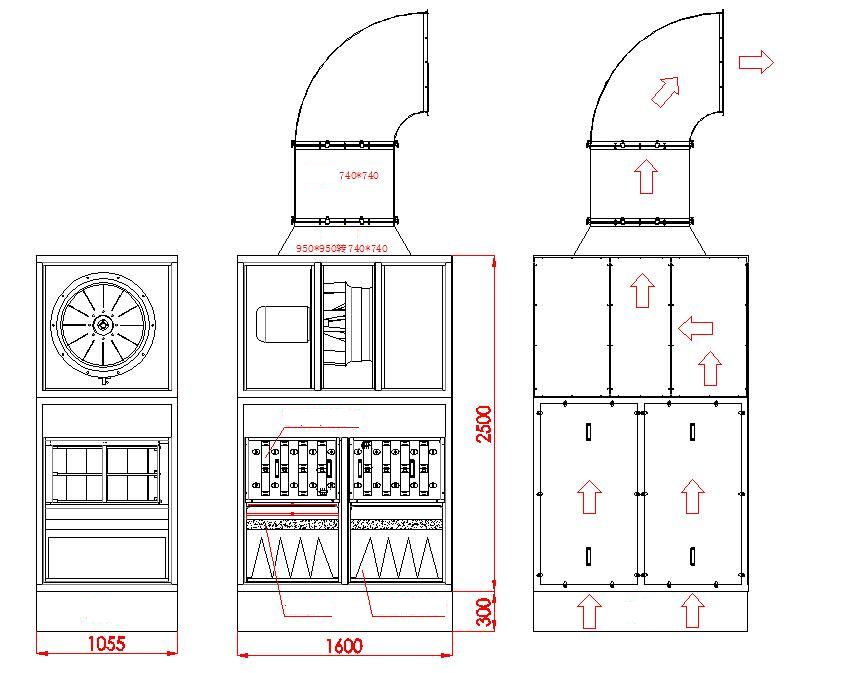

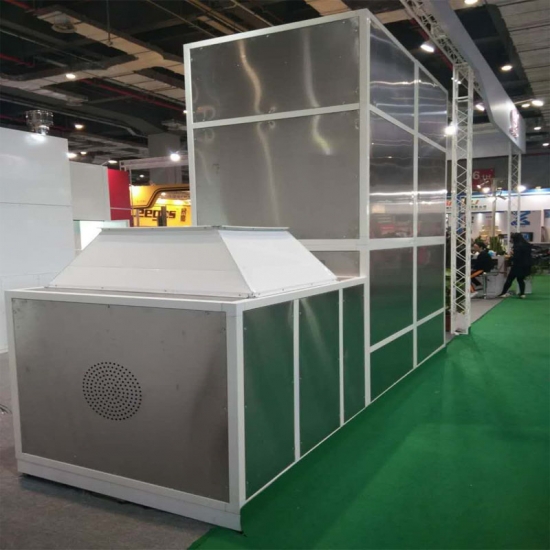

1.1 GL-HB1(total: VOCs 70-120 mg/m3) GL-HB1 model as below, air ducts and reducer pipes are for options, suggest the duct size should be≥740*740mm

Exhaust Gas Treatment Device

1.2 Detailed Technical specifications: GL-HB1(air flow: 18000m3/h)

Name	Brand	Spec.	Units	Qty.	Remark
Total size	Guangli	L1600×W1055×H2500	set		Frame+color steel plate
Dry filter	Guangli	L×W: 675×495	pcs	4	Bag filtration
Activated charcoal (10010050)	Guangli	L675×W490	pcs	One layer/4pcs drawer(drawer structure)	Honeycomb Type Activated Carbon: 96pcs
UV tube	German joint-venture		set	22pcs	UV power:3.3kw
Catalyst plate	Guangli	Aluminum materials L650×W495	pcs	8	Panel structure
Exhaust fan frame	Guangli	Total forming by color steel plate	set	1	Total frame, air-inlet on bottom
European fan	Shuangju	Air flow 18000m³/h	set	1	Motor will be placed outside, fan top position, 4kw
Control panel	Guangli	Schneider	set	1	Ballast and others will be placed outside and explosion-proof design

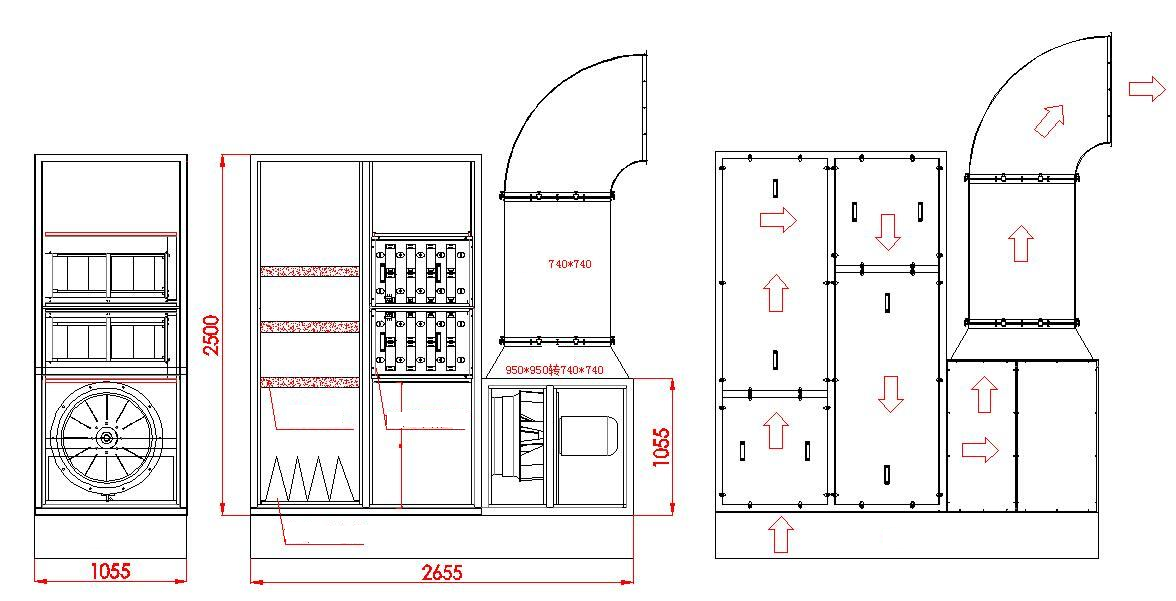

1.3 GL-HB2(total: VOCs 50-70 mg/m3)

GL-HB2 as below (air duct, reducer pipes arefor options, suggest the duct size should be≥740*740mm

Exhaust Gas Treatment Equipment

1.4 Detailed Technical specifications: GL-HB2 (air flow: 22000m3/h)

Name	Brand	Spec.	Units	Qty.	Remark
Total size	Guangli	L2655×W1055×H2500	set		Frame+color steel plate
Dry filter	Guangli	L550×W495	pcs	2	Bag filtration
Activated charcoal (10010050)	Guangli	L1000×W550	pcs	Three layer/3 drawer(drawer structure)	Honeycomb Type Activated Carbon: 126pcs
UV tube	German joint-venture		set	22pcs	UV power:3.3kw
Catalyst plate	Guangli	Aluminum materials L850×W495	pcs	4	Panel structure
Exhaust fan frame	Guangli	Total forming by color steel plate	set	1	Total frame, air-inlet on bottom
European fan	Shuangju	Air flow: 22000m³/h	set	1	Motor will be placed outside, fan frame structure, side position, 5.5kw
Control panel	Guangli	Schneider	set	1	Ballast and others will be placed outside and explosion-proof design

2. Standard models and configurations

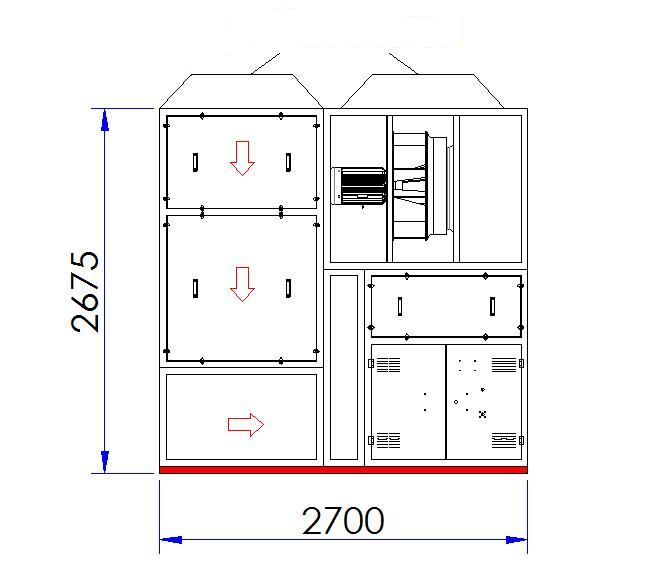

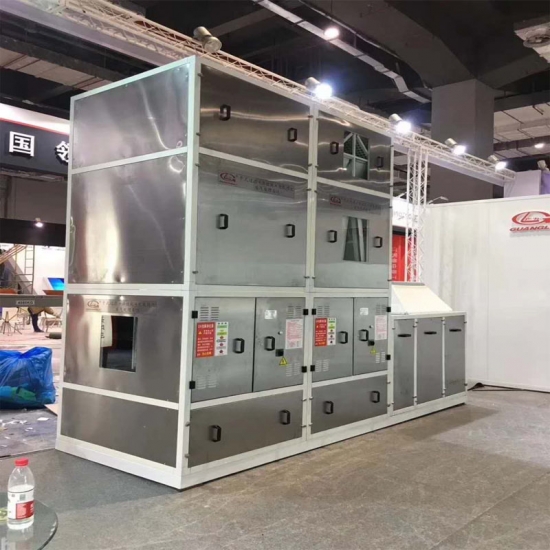

2.1GL-HB3(total: VOCs 40-70 mg/m3, for standard vehicle service and repair shop)

GL-HB3 as below (air duct, reducer pipes arefor options, suggest the duct size should be≥740*740mm

2.2 Detailed Technical specifications:

Name	Brand	Spec.	Units	Qty.	Remark
Total size	Guangli	L2700×W1365×H2625	set		Frame+color steel plate
Panel structure filter	Guangli	L652×W490×H50	pcs	4	W shape paper
Fiberglass filter	Guangli	L654×W320×H10	pcs	8	M shape
Dry filter	Guangli	L490×W650×H300	pcs	4	Bag filtration
Activated charcoal (100100100)	Guangli	L1010×W626	Set	8	Honeycomb Type Activated Carbon: 480pcs
UV tube	German joint-venture		set	30pcs	UV power:4.5kw
Catalyst plate	Guangli	Aluminum materials L1045×W650	pcs	4	Panel structure
Ozone filter panel	Guangli	Aluminum materials L1045×W650	pcs	2	Panel structure
Exhaust fan frame	Shuangju	Air flow: 24000m3/h	set	1	Total frame, 7.5KW
Control panel	Guangli	Schneider	set	1	Ballast and others will be placed outside and explosion-proof design

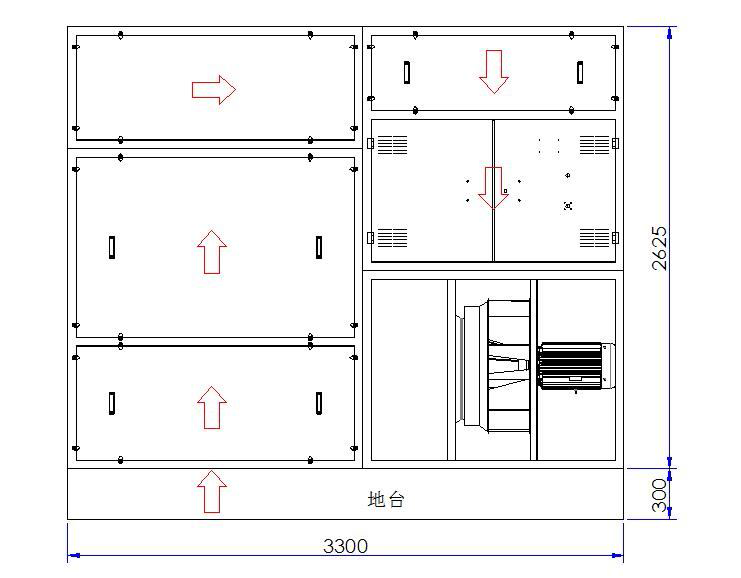

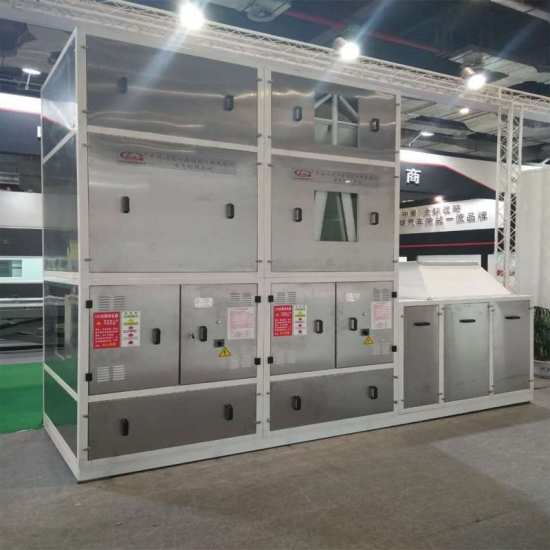

2.3 GL-HB303(total: VOCs 40-70 mg/m3, for standard 4S vehicle shop)

GL-HB303 as below (air duct, reducer pipes arefor options, suggest the duct size should be≥800*800mm

Exhaust Gas Handle Device

2.4 Detailed Technical specifications:

Name	Brand	Spec.	Units	Qty.	Remark
Total size	Guangli	L3300×W1365×H2625	set		Frame+color steel plate
Panel structure filter	Guangli	L652×W765×H50	pcs	4	W shape paper
Fiberglass filter	Guangli	L654×W425×H10	pcs	8	M shape
Dry filter	Guangli	L765×W650×H300	pcs	4	Bag filtration
Activated charcoal (100100100)	Guangli	L1010×W626	Set	12	Honeycomb Type Activated Carbon: 640pcs
UV tube	German joint-venture		set	40pcs	UV power:6.0kw
Catalyst plate	Guangli	Aluminum materials L1395×W650	pcs	4	Panel structure
Ozone filter panel	Guangli	Aluminum materials L1395×W650	pcs	2	Panel structure
Exhaust fan frame	Shuangju	Air flow: 24000m3/h	set	1	Total frame, 7.5KW
Control panel	Guangli	Schneider	set	1	Ballast and others will be placed outside and explosion-proof design

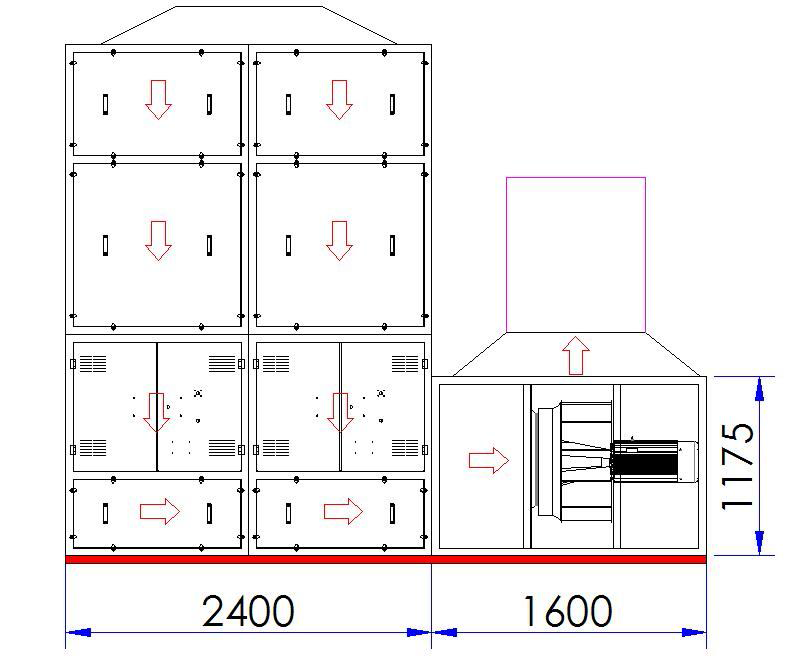

2.5 GL-HB4(total: VOCs 40-70 mg/m3, for high-end 4S vehicle shop)

GL-HB4 as below (air duct, reducer pipes arefor options, suggest the duct size should be≥850*850mm

Exhaust Gas Handle

2.6 Detailed Technical specifications:

GL-HB4(air flow: 28000m3/h, the air flow can be adjusted)

Name	Brand	Spec.	Units	Qty.	Remark
Total size	Guangli	L4000×W1365×H3350	set	1	Frame+color steel plate
Panel structure filter	Guangli	L652×W490×H50	pcs	8	W shape paper
Fiberglass filter	Guangli	L654×W320×H10	pcs	16	M shape
Dry filter	Guangli	L490×W650×H300	pcs	8	Bag filtration
Activated charcoal	Guangli	L1010×W626	Set	16	Honeycomb Type Activated Carbon: 960pcs
UV tube	German joint-venture		set	60pcs	UV power:9kw
Catalyst plate	Guangli	Aluminum materials L1048×W1305	pcs	8	Panel structure
Ozone filter panel	Guangli	Aluminum materials L1045×W650	pcs	4	Panel structure
Exhaust fan frame	Shuangju	Air flow: 28000m3/h	set	1	Total frame, 11KW
Control panel	Guangli	Schneider	set	1	Ballast and others will be placed outside and explosion-proof design

2.7 GL-HB5(total: VOCs 20-30 mg/m3, for high environmental requirements area)

GL-HB5 as below (air duct, reducer pipes arefor options, suggest the duct size should be≥950*950mm

2.8 Detailed Technical specifications: GL-HB5(air flow: 28000m3/h, the air flow can be adjusted)

Name	Brand	Spec.	Units	Qty.	Remark
Total size	Guangli	L4900×W1200×H3300	set	1	Frame+color steel plate
Panel structure filter	Guangli	L1100×W560	pcs	2	W shape paper
Fiberglass filter	Guangli	L1100×W560	pcs	2	M shape
Dry filter	Guangli		pcs	4	Bag filtration
Cylindrical filter	Guangli	L325×H600	pcs	9	Pulsed cleaning
Activated charcoal	Guangli	L1100×W560 and L600×W560	Set	Total: 2sets drawer structure	Honeycomb Type Activated Carbon: 1CBM
UV tube	German joint-venture		set	120pcs	UV power:18kw
Catalyst plate	Guangli	Aluminum materials L710×W1560	pcs	6	Panel structure
Iodine activated filter panel	Guangli	Aluminum materials L710×W560	pcs	1	Panel structure
Exhaust fan frame	Guangli	Forming by color steel	set	1	Total frame, air-inlet on bottom
European fan	Shuangju	Air flow: 28000m3/h	set	1	Motor outside position, total frame, fan side position, 15KW
Damper	Guangli	L740×W740	pcs	1	Adjust air
Control panel	Guangli	Schneider	set	1	Ballast and others will be placed outside and explosion-proof design
