Guangli design full downdraft paint spray booths provide a superior spray environment for a variety of standard sizes and expandable configurations to meet your industrial parts, truck and large equipment, or custom finishing needs.
Description | GL4000-A2-CE Car Body Repair Equipment Auto Spray Booth
Our standard Downdraft Spray Booth draws non-pressurized fresh filtered air, from a ceiling-mounted supply plenum, which then flows uniformly over the entire work area and out through a filtered, grated in-floor or grids basement exhaust plenum – creating an optimal spray coverage environment.
Spray Booth Specifications:
The main room & generator system:
Wall panel: sandwich style, δ=50mm，rock wool available as required.
Basement: steel structure, full grids，ramp: 2 pcs of grids.
Door: 3 pcs of front door without aluminum side cover. 1pcs of emergency door with pressure lock.
One 11kw intake fan and one 11kw exhaust fan.
DUCTS:
Electrical VCD. one pressure meter.
Spraying/baking transition damper, automatically air controlled.
Fire protection equipment: 1set, the inductor control closed; energy-saving equipment: 1set.
4m straight exhaust ducts, one 90° bend, and one 60° bend.Intake duct :4m straight exhaust
ducts, one 90° bend, and one 60°bend. 4m straight chimney and 2 small bends.
Filter & light system:
Upper light: 10 sets, 4*40w per set. side lights: 8sets, 4*40w.
Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
Heating & control system:
5 pcs of floor filter and 2 pcs of air mouth filter.--Heat exchanger: stainless steel. Riello/ RG5S burner.
Control box: imported components, overload, overheat, phase-lacking, phase-locking protection,
Motor soft start.
Automatically stop when preset time is up.
Constant temperature spraying.
Technical Specifications
GL4000-A2-CE
External size(m)(LxWxH)
7.0×5.6×3.5
Internal size(m)(LxWxH)
6.9×3.9×2.7
Door width(m)
3.0
Door height(m)
Air flow (m3/h)
Inside on-load air speed(m/s)
Power (kw)
Vehicle suited
Tempraturer(Degrees Celsius)
Water based device
Environmental protection Device
2.66
30000
0.3-0.5
25
Saloon car
20-80
As optional
As optional

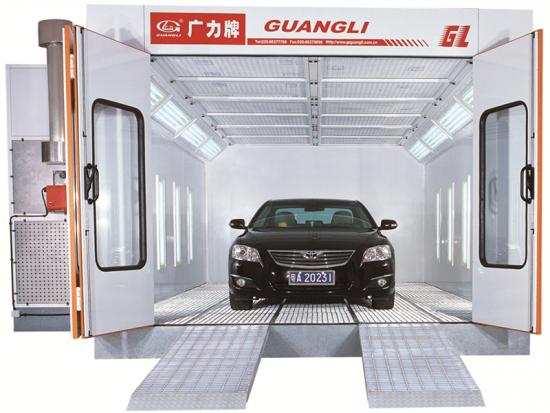

GL4000-A2-CE Spray Booth Show:
